Reposition Tool

Avatar
Sarah Swinney
Follow

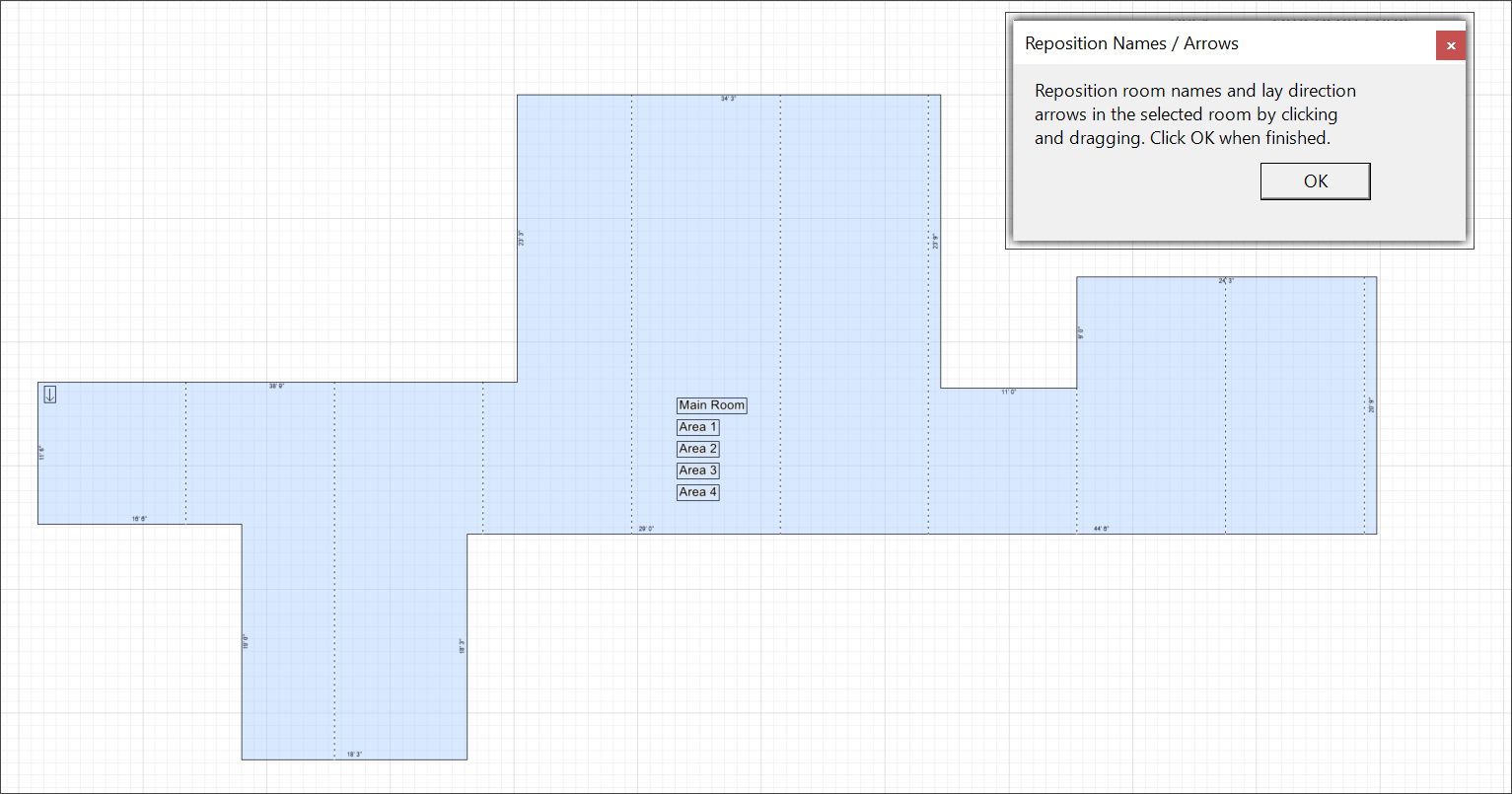

When the Reposition tool is active you can freely move room names and lay direction arrows around the drawing space.


How To:

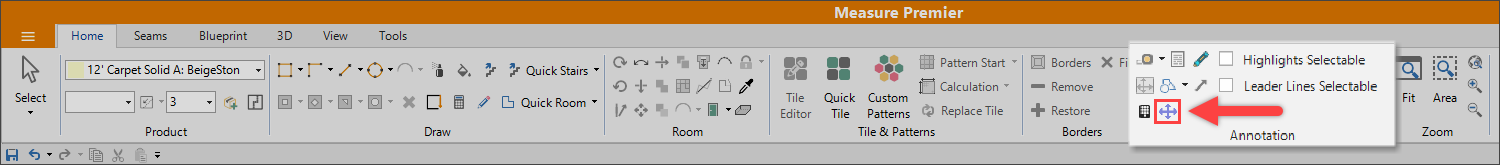

  1. Select the tool and then the room names and lay direction arrows will become selectable.

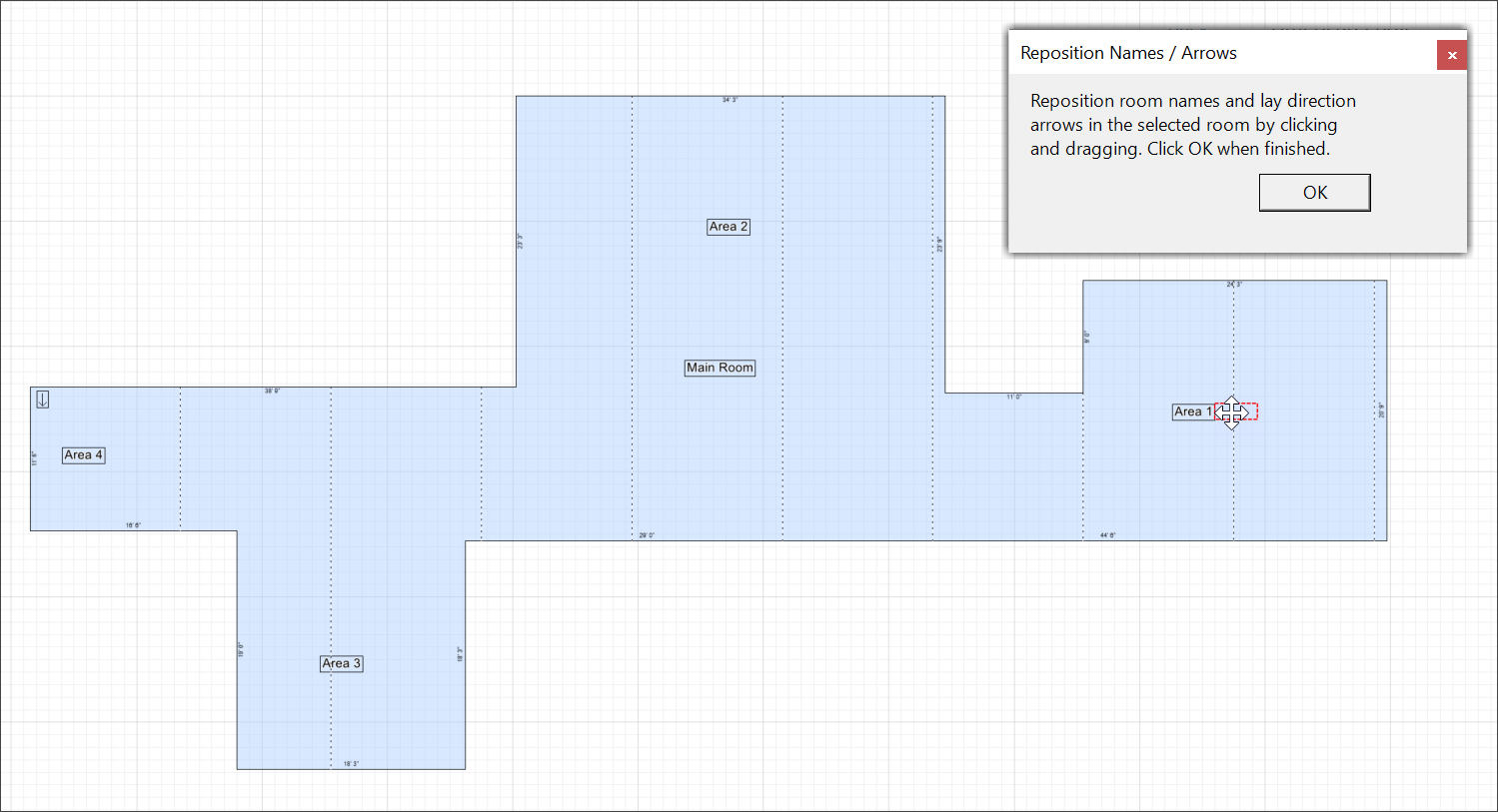

  2. Drag the items to any location on the drawing area.
  3. Click the OK button in the Reposition tool box to save their new positions and deselect them.
